CX2000 Edge Processor
Experience superior performance in a compact package with Optra Edge CX2000. Designed for media applications (including 4K video and audio), as well as for running all types of applications, and sensor data collection.
Learn More
CX2000 Specifications
| Product | |
|---|---|
| Model | CX2000 |
| Part Number | 77D1100 |
| List price (per unit) | $399 USD |
| Performance | |
|---|---|
| Processor | Quad-Core ARM A55 (1.8Ghz) |
| Storage | 32GB |
| Memory | 4GB |
| AI Performance | Not rated |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | No |
| Secure boot | Yes |
| OS update | Yes |
| Connectivity | |
|---|---|
| Local Area Network (LAN) | 1 x 10/100/1000 Mbps |
| Wireless Local Area Network (WLAN) | Wi-Fi 5 (2.4Ghz & 5Ghz) |
| Personal Area Network (PAN) | 1 x 1 BlueTooth Low Energy (BLE) |

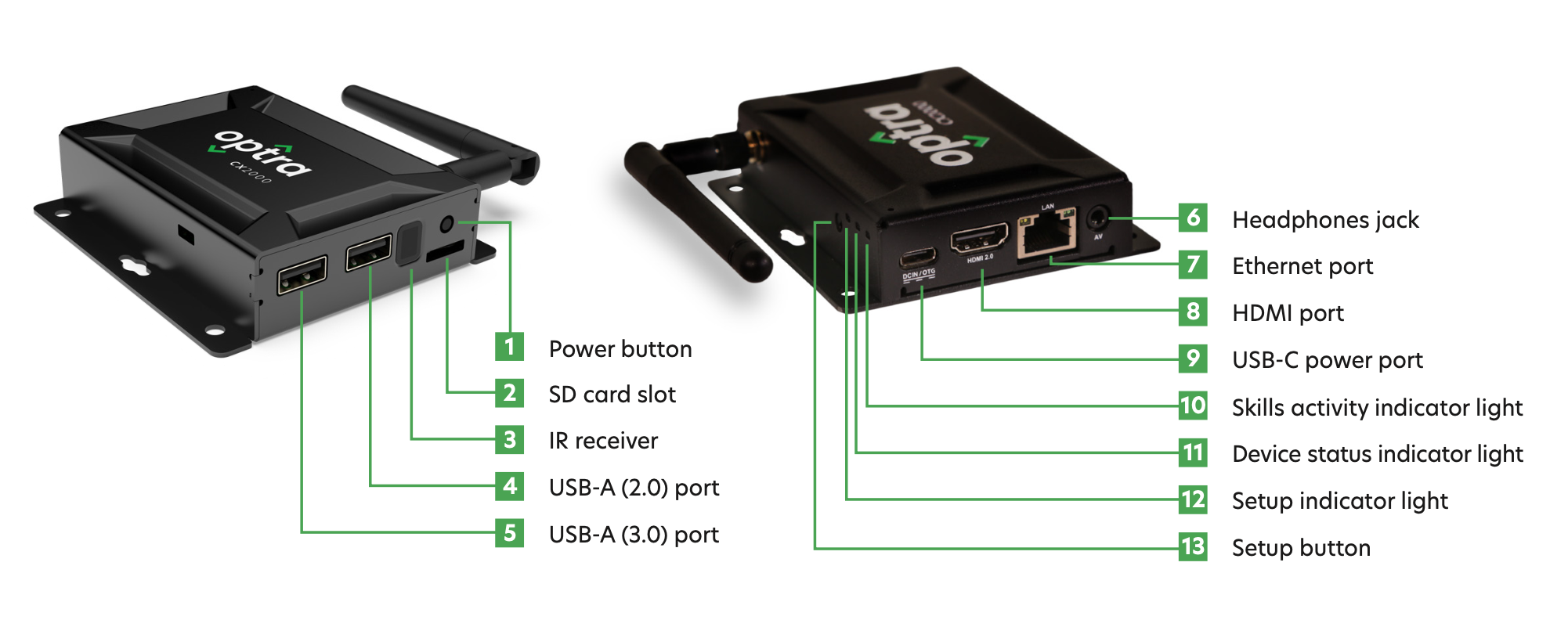

| Local Ports | 1 x 1 USB-A (2.0) 1 x 1 USB-A (3.0) 1 x 1 IrDA |
| Audio input | 1 x internal microphone |
| Audio output | 1 x 3.5mm connector |
| Video output | 1 x HDMI 1.x (4K out) |
| General Purpose Input/Output (GPIO) | None |
| External storage | 1 x 1 microSD |
| Antennas | 1 x 1 RP-SMA |
| Environment | |
|---|---|
| Operating temperature | 32F (0C) to 104F (40C) |
| Operating humidity | 95% @ 104F(40C) - non-condensing |
| Storage temperature | -40F (-40C) to 140F (60C) |
| Cooling | Passive |
| Power | |
|---|---|
| Power supply | 15W external |
| Input voltage | 5V |
| Certifications | |
|---|---|
| Certifications | CB, CE, UL, FCC |
| Software | |
|---|---|
| Docker version | 20.10.25-ce |
| System OS | Poky Linux (Kirkstone) |
| Packaging | |
|---|---|
| Dimensions (without antennas) | 3.7" x 3.4" x 0.9" (94 x 87 x 23mm) |
| Weight | 1.2 lbs (0.55kg) |
| Box Contents | 1 x Optra Edge device 1 x antenna 1 x power supply 1 x publications |
